GPU Cloth Sim

GPU-accelerated cloth simulation for Godot 4.5+ using Position-Based Dynamics on compute shaders.

Demo

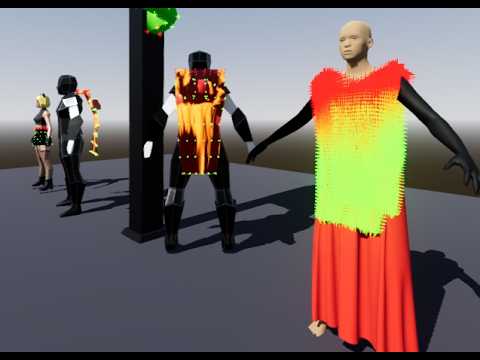

Video Tutorial

^^ click me

Support

Join the discord for support :) -- https://discord.gg/maFsFAfqnY

What's New in 3.0.0

Substrate rewrite plus a full body-and-cloth collision stack. The solver now simulates on welded particles with GPU-side normal computation and storage-texture mesh writeback (no more per-frame CPU mesh readback), and it can stack multiple cloth solvers that collide against each other AND against a character's animated body — silhouette-accurate. The fold-through artifacts that used to break flag normals are gone, the per-frame CPU stall is gone, and animated characters with shirts AND pants on the same skeleton just work. Six pieces compose:

• GPU substrate — particle positions, predicted positions, velocities, and normals all live in storage buffers; render meshes read positions + normals from storage textures bound to the vertex shader (positions_tex / normals_tex sampled via a VERTEX_ID → welded_idx lookup texture). No per-frame ArrayMesh writeback, no _rd.sync() stall — the GPU pipeline runs end-to-end, and the rendered mesh just samples the simulation's textures in the vertex stage. Compute passes compose freely without forcing readbacks: predict → constraints → collisions → update → normals → output, all in one command list.
• Body-derived colliders, one mesh source. A single body_mesh export feeds three independent collider techniques that each opt in via their own LOD knob: auto-fitted bone capsules (auto_collider_lod, fits one capsule per qualifying bone using bone-weighted vert distributions with percentile-trimmed radii), sphere cloud (body_sphere_lod, dense per-vert sphere coverage for irregular regions where capsules can't fit), and a decimated skinned triangle mesh collider (body_collider_voxel_resolution, voxel-clusters body verts to a low-poly proxy and skins each tri's verts via single-bone dominant weight per frame). Pick one for cheap bulk coverage, or stack them — the triangle mesh is silhouette-accurate where capsules approximate. Drives cloth_skin_offset so cloth particles physically sit off the body, plus a body_collider_thickness "padding" knob that controls the contact gap and collider_friction for Bridson Coulomb damping at every contact (kills the velocity injection that propagates as jitter through structural constraints).
• Multi-cloth: peer cloth-cloth collision — list other solvers in the peer_cloth_solvers array and each peer's current animated geometry becomes a triangle SDF collider for this solver. Peers share buffers via the main RenderingDevice (no copy, no per-frame readback), so a shirt-on-pants setup is just two solvers naming each other as peers. Each solver pre-builds a decimated peer-collision proxy (voxel-clustered welded particles, peer_collider_voxel_resolution) — peers bind the small proxy index buffer (typically 200-500 tris from a 6000-tri cloth) plus our full positions buffer, dropping per-frame cost by ~20× vs colliding against the full mesh. Per-frame cost = peer_proxy_tri_count × our_particle_count, dispatched once per substep.
• Self-collision — the same peer-proxy infrastructure pointed at self. Enable self_collide and each particle SDF-pushes out of its own decimated proxy mesh every substep, with the shader skipping triangles where the testing particle is a vertex (else infinite-direction push). Fold-through that used to break flag normals (overlapping faces averaged to zero in the normal accumulator, producing black holes) goes away because layers physically separate by self_collide_thickness (default 5 mm) instead of overlapping. Lets you crank max_travel_distance without tunneling artifacts.
• Skinned-target sanitization — once per frame, BEFORE the substep loop, a sanitizer pass pushes every particle's skinned target (the bone-driven position cloth attaches to) out of every active collider — body capsules, body triangle mesh, AND every peer cloth's current geometry. Kills the rest-jitter / rest-clipping cycle: without it, anchor positions sit inside the body or inside a peer cloth, every substep snaps pinned particles back into that volume, collide pushes them out, and the cycle propagates structurally as visible jitter. With it, anchor positions are always reachable from outside collider volumes; rest is genuinely at rest.
• Per-particle thickness — both peer and body collide passes multiply the base thickness by per-particle cloth_weight (the same vertex-color value that drives attachment stiffness). Pinned particles (weight 0) contribute zero thickness so they don't fight their snapped anchor; blend-zone particles (weight 0.3-0.7) get proportionally less push; fully-free particles (weight 1) get the full base thickness. Without this, the attachment-region "tight chest" verts kept pushing themselves out of the body and away from their pin targets — the same blend channel now correctly suppresses self-push where the cloth is meant to be attached.

Authoring model in v3.0: vertex-color channel R = cloth weight (0 = anchored to skinned target, 1 = free PBD); Marker3D pins are orthogonal to weights (a particle can be pinned to a marker AND have a free cloth weight, in which case the marker overrides the skinned target). Pick a channel via cloth_weight_channel. Anchored verts (weight near 0) are inverse-mass 0 in the solver.

Debug: debug_show_particles (colored crosses + velocity vectors), debug_show_colliders (cyan capsules, yellow sphere cloud, green body triangle mesh, magenta manual colliders, all in their current animated pose), and debug_show_peer_proxy (orange wireframe of the cloth-cloth proxy mesh deforming with the simulation in real time) — leave the collider overlay on while tuning.

Migration: flip_normals default is now true — Blender/glTF round-trips overwhelmingly land here producing inward right-hand-rule normals, and four out of five existing scenes already set it true. A single existing scene that relied on false (Demo/Assets/LowPolyDude/low_poly_dude.tscn) now sets it explicitly. The old separate body_collider_mesh export was collapsed into body_mesh — set body_collider_voxel_resolution > 0 to opt into the triangle mesh collider.

What's New in 2.1.0

Bone-driven attachment + per-vertex sim mask. Drop a skinned cape into the solver, paint a mask layer in Blender saying "rigid here, free here," and the solver does the right thing on the same mesh — collar tracks the spine bone every frame, hem swings under gravity, smooth blending in between. The standard production-cloth pipeline, with no in-engine UI required. Three pieces compose:

• Bone bindings from imported mesh. New skeleton: NodePath export. The solver reads ARRAY_BONES/ARRAY_WEIGHTS from the source mesh, captures each bone's init pose in solver-local space, and per frame uploads Skeleton3D.get_bone_global_pose(b) to a small mat4 buffer. A new compute pass (cloth_skinning.glsl) skins each particle's attachment target per substep — same compute primitive as the v1.4 fishing-line pass, just with bone matrices replacing pin positions.
• Continuous sim mask painted as a vertex color attribute. New sim_mask_from_vertex_color + sim_mask_channel exports. mask = 0 (paint black) → particle rigidly follows its skinned target every frame. mask = 1 (paint white) → free PBD simulation, bounded by skin_attach_radius. Smooth values lerp the attachment stiffness — this is the keystone for "tight chest, loose hem on the same garment." The continuous mask subsumes v2.0's binary pin_from_vertex_color, which is now deprecated and forwards to the new path with threshold-0.5 binarization.
• Same mask, three target sources. When skeleton is wired, the target is bone-driven. When pin_targets (Marker3Ds) are set instead, the target is the K-nearest pin blend. When neither is wired, the target is the particle's init local position. The mask interpretation is identical across all three regimes — lets you drop a painted cape in the solver and see the mask working before you wire up a skeleton, then add the skeleton incrementally.

Migration: pin_from_vertex_color keeps working with a deprecation warning. Note the semantic flip when migrating: the old "high channel value = pinned" became "low channel value = rigid" in the continuous mask. If you painted white-where-pinned in Blender for v2.0, you'll want to invert that channel for the new continuous mask (or just keep using the deprecated path until you re-paint).

Blender Authoring Pipeline

The end-to-end workflow for a skinned cape (or any garment):

1. Model the garment in Blender. Standard modelling — keep topology cloth-friendly (avoid degenerate triangles), UV unwrap normally.
2. Rig. Parent the garment to your character's existing armature (Object → Parent → With Empty Groups if you'll paint weights manually). For a cape you typically need 1-3 bones (spine top, neck, optionally a controller for the cape itself).
3. Weight paint bones. Standard Blender Weight Paint mode. Paint full weight to the parent bone(s) on the collar / attachment region. Leave the simulation region unweighted — those particles aren't bone-driven, they'll be pure simulation.
4. Add the cloth_weight vertex color layer.
   • In Object Data Properties → Color Attributes, add a new Face Corner ▸ Byte Color attribute named cloth_weight. (Float Color works too; both export to .glb as vertex color.)
   • Switch to Vertex Paint mode, select the new attribute as the active one.
   • Paint black (R = 0) where the cloth should rigidly follow bones (collar, chest panel — the bone-weighted region from step 3).
   • Paint red / white (R = 1) where the cloth should freely simulate (hem, sleeves — the unweighted region).
   • Paint mid-red for soft attachment falloff (the transition strip between rigid and free, typically 1-3 cm wide).
   • The mask reads the red channel by default. Paint into R or override via the solver's cloth_weight_channel export (0=R, 1=G, 2=B, 3=A).
5. Export .glb with Mesh + Armature. Tick "Vertex Colors" and "Skinning" in the export panel.
6. In Godot: add a GPUClothSolver node. Set target_mesh to the imported MeshInstance3D. Set skeleton to the imported armature's Skeleton3D node. Confirm cloth_weight_channel matches the channel you painted. Run.

Mental model: bone weights say where the cloth attaches; the cloth_weight says how rigidly. They're orthogonal channels of authoring intent. The weight mask works without a skeleton too — useful for debugging the painting before wiring up rigging — in which case cloth_weight = 0 particles freeze at their init local position and cloth_weight = 1 particles simulate freely. Marker3D pins listed in pin_targets are a third orthogonal channel: they override the skinned target of the nearest particle regardless of cloth_weight.

What's New in 2.0.0

Custom-mesh source. The solver no longer hardcodes a planar grid — assign any Mesh resource (imported .gltf/.fbx/.obj or a programmatic ArrayMesh) to the new source_mesh export and the cloth simulates on that mesh's actual topology. UV seams persist; pins can be painted in Blender via vertex color; bending behaviour is derived from edge-shared triangle pairs. Five things compose to make this work:

• Vertex welding — imported meshes duplicate vertices at UV seams and hard-normal edges (same world position appears 2-6 times). Without welding the simulation tears apart at every seam. The solver spatial-hashes positions, checks neighboring cells by true distance against weld_epsilon, and collapses coincident verts into a unique particle set while keeping a remap from original render slots to welded particles.
• Topology-driven constraints — structural constraints are emitted from each unique edge in the welded mesh, with rest distance set from the initial Euclidean separation. Bending constraints come from edge-shared triangle pairs (the two non-shared vertices) instead of the v1.x grid-specific "skip-one" pattern. Toggle via bending_from_topology.
• Runtime graph coloring — source-mesh constraints are colored at init. A greedy coloring pass walks the constraint list and places each constraint into the first group whose vertex set doesn't already contain either endpoint. The solver dispatch loop iterates _constraint_groups so arbitrary topology produces correct race-free dispatches.
• Render-vertex preservation — the simulation runs on welded particles but rendering uses the input mesh's original vertex slots, indices, and UVs. Two slots on either side of a UV seam map to the same particle (so they get the same world position) but keep their distinct UVs and per-face normals. Tangents are recomputed per-frame from UV gradients.
• Vertex-color pin authoring — flip pin_from_vertex_color, set a channel + threshold, and weight-paint a pin mask in Blender. Welded particles whose source vertices exceed the threshold are marked inverse_mass = 0. pin_targets (Marker3D based) still works for dynamic anchors.

Compatibility: existing scenes with no source_mesh assigned keep the original cloth_width × cloth_height grid path unchanged. pin_top_row is honoured only on the grid path; with a source_mesh it's ignored (with a warning).

What's New in 1.4.0

The fishing-line constraint matures from "single nearest pin" into a properly generalized binding system. Three changes that compose:

• Velocity-aware projection — when the fishing-line constraint clamps a particle to its boundary sphere, the outward radial component of velocity is now zeroed. Pure tangential motion is preserved. Previously the particle would buzz against the boundary every frame because its outward velocity kept pushing it back outside; now it slides along the boundary like a real piece of fabric reaching the end of its tether. Subtle visually but kills a real source of high-frequency jitter.
• Per-particle stretch via stretch_curve — a new optional Curve resource lets you author "stiff at the pin row, looser at the hem" with one curve. Sampled by row_index / (cloth_height - 1), so curve t = 0 is the top row and t = 1 is the bottom. When unassigned (or the curve has no points), falls back to the scalar fishing_stretch. Stretch is baked into the bindings buffer at init, so per-particle authoring costs zero runtime.
• K-nearest binding — each free particle is now bound to its K nearest pins (default K = 4) with weights inversely proportional to rest distance. The constraint clamps to the weighted blend of pin positions, with a weighted blend of per-binding max distances. Eliminates the "Voronoi seam" artifact you'd see between regions assigned to different pins on a cloth with multiple pins. K = 1 reproduces v1.3 behaviour. Each step of K adds 16 bytes per particle to the binding buffer; cost is dominated by the cloth size, not K.

API note: the old fishing_stretch scalar still works as the default. stretch_curve is opt-in. bindings_per_particle defaults to 4 — if you want the v1.3 single-anchor behaviour exactly, set it to 1.

What's New in 1.3.1

• World-down gravity fix — gravity used to be applied in solver-local space, so rotating the GPUClothSolver node in the world tilted "down" with it (a 90° roll made cloth fall sideways). The CPU now transforms world-space gravity into solver-local each frame before pushing it to the predict shader, the same way wind has always worked. Push constant grew from 64 to 80 bytes; all four core compute shaders updated to match.
• Surface shader documentation — the procedural fabric shader (silk / linen / lava, borders, emblems, grunge, wear, shape mask, voxel-AO consumer) is no longer a one-line bullet in the README. Full uniform reference now lives in the Cloth Surface Shader section.

What's New in 1.3.0

• Fishing-line anchor constraint — borrowed from the Ghost of Tsushima cloth pipeline. PBD's spring network propagates tension one link per iteration, so a tall cape's bottom row keeps drooping for several frames before the top pin "tells" it to stop. The fishing line precomputes each particle's nearest pin and rest distance, then hard-clamps every free particle to within fishing_stretch × rest_distance of that pin's current position each substep — propagating tension in O(1) instead of O(grid). Lets stiff cloth actually feel stiff at low iteration counts. One extra compute pass, ~particle_count threads, no graph-coloring needed (each thread reads only its own anchor's position). Disable via enable_fishing_line if you want pure PBD behaviour.

What's New in 1.2.0

• Per-particle voxel ambient occlusion — a 5th compute pass voxelizes the cloth's particles into a small bit-packed grid (default 32×32×16) each frame, then samples a neighborhood per particle to compute occlusion. The result is read back alongside positions, written to vertex COLOR.r (visibility), and consumed by the surface shader as Godot's AO builtin output. Folds darken naturally with no screen-space noise, view-independent, ~0.2 ms on a mid-range GPU.
• Double-sided lighting fix — back-face normal-map handling now flips the tangent-space z component so cloth back faces light correctly. Previously the procedural fabric normal pointed the wrong way on the side facing away from the camera/light, producing flat or wrong shading.

What's New in 1.1.0

• Procedural fabric surface shader — silk, linen, and animated lava fabric types with primary/secondary tint, border trim (per-edge bitmask), emblem layer, dirt, and edge wear. Replaces the previous minimal default shader.
• Shape-mask UV cutout — bind a sampler2D to shape_mask and the fragment shader discards where the red channel falls below shape_mask_threshold. Lets you cut non-rectangular cloth shapes (banners, ragged hems, perforations) without changing the simulation grid.
• Async GPU readback — the solver now submits compute work and defers the _rd.sync() to the next physics frame, so the GPU pipelines simulation against the next frame's CPU work instead of stalling.
• Smoothed pin tracking — pins lerp toward their marker target each frame instead of teleporting, eliminating cloth snap when markers move quickly. Tunable via pin_smooth_speed.
• Explicit collider list — new collider_targets: Array[NodePath] lets the solver track colliders that aren't direct children (e.g. bones in a skeleton). Falls back to child auto-discovery when empty.
• Numerical stability fixes — inertia magnitude clamped per substep to prevent cloth collapse on fast parent motion; constraint solver falls back to a gravity-axis correction direction when particles fully collapse instead of producing NaNs.

Migration note: the new default shader uses different uniform names (fabric_type, primary_color, secondary_color, etc.). The old albedo_texture / color_tint uniforms no longer exist. Existing scenes that wired those will need their shader_parameter/* fields updated.

Features

• Full GPU pipeline — predict, constraint solve, collision, normal computation, and mesh output all run as compute shaders; no per-frame CPU mesh readback (render meshes sample positions/normals from storage textures bound to the vertex shader)
• Position-Based Dynamics with graph-colored constraint solving — no race conditions, no atomics, fully parallel per constraint group
• Multi-cloth interaction — list other solvers in peer_cloth_solvers and they collide against each other's current animated geometry every substep via decimated proxy meshes (~20× cheaper than colliding against full mesh). Shared RenderingDevice buffer sharing, no per-frame copy or readback. Symmetric setup: name peers on both sides for two-way interaction
• Self-collision — enable self_collide to push each particle out of its own decimated proxy mesh every substep. Fixes fold-through artifacts on flags/capes/skirts without limiting max_travel_distance
• Body-derived colliders — point body_mesh at any skinned MeshInstance3D and opt into three independent techniques via their own LOD knobs: auto-fitted bone capsules (percentile-trimmed radii), per-vert sphere cloud for irregular regions, and a voxel-decimated triangle mesh collider that's silhouette-accurate. All three can stack
• Bridson Coulomb friction at every contact — damps tangential motion at body / peer / self contacts by μ × push_magnitude, killing the velocity injection that propagates as jitter through structural constraints. Tunable via collider_friction
• Skinned-target sanitization — once-per-frame pre-substep pass projects each particle's bone-driven anchor position out of all active colliders (body capsules + body triangle mesh + every peer cloth's current geometry), eliminating rest-jitter from anchors trapped inside collider volumes
• Per-particle thickness — collide thickness scales by the per-particle cloth_weight value, so attachment-region particles (weight near 0) don't fight their snapped anchors while free particles (weight 1) get the full thickness
• Manual collision primitives — sphere, capsule, and oriented bounding box (OBB) via GPUClothCollider nodes
• Inertia system — cloth naturally trails behind parent node movement
• Wind with organic turbulence via sum-of-sines at irrational frequency ratios
• Structural, diagonal, and bending constraints for controllable stiffness vs. drape
• Pin targets — pin particles to Marker3D nodes with per-pin smoothing to prevent snap on fast motion. Marker pins are orthogonal to the vertex-color cloth-weight channel — pinned particles override their skinned target
• Fishing-line constraint with K-nearest weighted blending — Ghost-of-Tsushima-style hard distance clamp from each particle to the weighted blend of its K nearest pins (default K=4). Tension propagates instantly across the cloth instead of one spring-link per iteration. Per-row stretch authoring via optional Curve resource. Velocity-aware projection zeros outward radial velocity at the boundary so cloth slides instead of buzzes
• First-class procedural fabric shader — ships as the default material on every solver, no setup required. Three fabric types (silk with directional sheen streaks, linen with basket-weave warp/weft, animated lava with domain-warped FBM cracks and emission), each with matching procedural normal maps. Configurable primary/secondary colors with full PBR knobs (roughness, metallic, specular). Border trim with per-edge bitmask (any combination of left/right/top/bottom) and optional glow. Heraldic emblem layer (place any texture, three blend modes). Two-channel grunge — gradient + edge + noise dirt, plus edge wear that brightens fabric near hems. Lava-specific controls for crack scale, flow speed, octave count, emission strength
• Shape-mask cutout — bind a sampler2D to shape_mask and the fragment shader discards where the red channel falls below shape_mask_threshold. Lets you cut non-rectangular cloth shapes (banners, ragged hems, pennants, perforations) without changing the simulation mesh. UV scale + offset uniforms let you tile or position the mask
• Drop-in custom material — every uniform on the default shader is exposed in the inspector, but you can replace it entirely by assigning anything to cloth_material. The substrate group (positions_tex, normals_tex, welded_index_tex) is what custom shaders bind to read the GPU-simulated state in their vertex stage
• Editor preview + runtime debug overlays — solver/collider gizmos drawn in the editor viewport (@tool). At runtime: debug_show_particles (colored crosses + velocity vectors, red=anchored / green=free), debug_show_colliders (cyan capsules, yellow sphere cloud, green body triangle mesh, magenta manual colliders — all in their current animated pose), debug_show_peer_proxy (orange wireframe of the cloth-cloth proxy deforming with the simulation in real time)
• Double-sided rendering with proper back-face normal-map handling

Requirements

• Godot 4.5+
• Vulkan renderer (Forward+ or Mobile) — compute shaders require it. The Compatibility (OpenGL) renderer is not supported.

Installation

The easiest path is the prebuilt plugin zip — addon code only, ~100 KB:

1. Grab gpu_cloth_sim.zip from the repo root (or download a release).
2. In Godot: AssetLib tab → top-right install icon → pick the zip → install into your project. Drops everything into addons/godot_gpu_cloth/.
3. Project → Project Settings → Plugins, tick GPU Cloth Sim.

To explore the demo scenes (animated human in shirt + pants, low-poly cat, flag, capes), clone the full repo — the Demo/ folder ships the assets that aren't bundled in the plugin zip (it's ~600 MB of skinned meshes + textures, intentionally kept out of the install zip).

Rebuilding the ZIP

To rebuild gpu_cloth_sim.zip from the repo root after changes:

zip -r gpu_cloth_sim.zip addons/ LICENSE README.md -x "*.import" "*.uid" "*.DS_Store"

Plugin-only — Demo/ is intentionally excluded for download size. Godot regenerates .import and .uid files on first project load, so excluding them is safe and produces a smaller zip.

Quick Start

1. Add a GPUClothSolver node, set target_mesh to a MeshInstance3D whose mesh you want to simulate (any .glb/.fbx/.obj import or programmatic ArrayMesh).
2. (Rigged cloth only) Set skeleton to the Skeleton3D driving the mesh — bone weights from the imported mesh automatically become per-particle attachment targets.
3. Paint a cloth weight layer in Blender as a vertex color: weight 0 = anchored to skinned target, weight 1 = free PBD; smooth values blend. Pick which channel via cloth_weight_channel (default R).
4. (Optional) Add Marker3D children and list them in pin_targets for dynamic anchors that override the skinned target. Or add GPUClothCollider children for manually-placed sphere/capsule/box collision.
5. (Optional, rigged) Point body_mesh at the character's body and pick a collider technique: auto_collider_lod > 0 for bone capsules, body_sphere_lod > 0 for sphere cloud, body_collider_voxel_resolution > 0 for the decimated triangle mesh. Stack any combination.
6. (Optional, multi-cloth) List other solvers in peer_cloth_solvers for cloth-on-cloth, or flip self_collide = true to prevent fold-through.
7. Run.

GPUClothSolver Properties

The properties below are the headline knobs. Every export has a full long-form docstring visible in the Godot inspector — hover the property name for the detailed explanation, edge cases, and tuning advice. The summary here is intentionally compact.

Mesh Input

Property	Type	Default	Description
target_mesh	NodePath	(empty)	MeshInstance3D to simulate. Any .glb/.fbx/.obj import or programmatic ArrayMesh works.
skeleton	NodePath	(empty)	Skeleton3D driving target_mesh (rigged-mode). When set, the mesh's ARRAY_BONES/ARRAY_WEIGHTS become per-particle skinned attachment targets. Unset = unrigged mode, cloth attaches to its own initial local position.
weld_epsilon	float	0.001	Vertex coalescing tolerance — duplicates at UV seams / hard normals within this distance collapse to one simulated particle.
cloth_weight_channel	int (0–3)	0	Which vertex-color channel carries the cloth-weight mask (R/G/B/A). 0 = anchored to skinned target, 1 = free PBD, smooth blend in between.

Physics

Property	Type	Default	Description
gravity	Vector3	(0, -9.8, 0)	World-space gravity. Authored in world, transformed into solver-local each frame.
solver_iterations	int (1–32)	8	Constraint solver passes per substep.
substeps	int (1–32)	8	Physics substeps per frame.
stiffness	float (0–1)	0.5	Structural constraint stiffness.
bend_stiffness	float (0–1)	0.1	Bending constraint stiffness.
bending_from_topology	bool	true	Build bending constraints from edge-shared triangle pairs. Off = structural only, very droopy cloth.
damping	float (0–1)	0.99	Velocity damping per substep.
max_speed	float	5.0	Per-particle velocity clamp.
max_travel_distance	float	0.1	Per-substep position-delta clamp. Crank with self_collide on to allow snappy cloth without tunneling.

Pinning + Fishing Line

Property	Type	Default	Description
pin_targets	Array[NodePath]	[]	Marker3D nodes that override the skinned target of the nearest particle. Orthogonal to cloth_weight_channel.
pin_smooth_speed	float	20.0	Lerp speed for pin tracking. 0 = freeze at init.
enable_fishing_line	bool	true	Hard-clamp each free particle to stretch × rest_distance of its K-nearest pin blend. Tension propagates in O(1) per particle. Skipped if no pins.
fishing_stretch	float	1.02	Default stretch multiplier (fallback when stretch_curve unset). 1.0 = inelastic.
stretch_curve	Curve	null	Optional per-row stretch override. t=0 = top, t=1 = bottom.
bindings_per_particle	int (1–8)	4	How many nearest pins each particle weights against. K=1 = v1.3 behaviour, K=4 = smooth blends.

Colliders (body)

Property	Type	Default	Description
collider_targets	Array[NodePath]	[]	Manually-placed GPUClothCollider nodes (sphere/capsule/box). When empty, auto-discovers children.
body_mesh	NodePath	(empty)	Single source mesh for all three body-derived collider techniques below. Rigged-mode only.
auto_collider_lod	int (0–3)	0	0 = off, 1-3 = bone-weight threshold for auto-fitted capsules. ~6-40 capsules depending on level.
body_sphere_lod	int (0–3)	0	0 = off, 1-3 = sphere-cloud density. Per-vert spheres for irregular regions.
body_collider_voxel_resolution	int (0–128)	0	0 = off, > 0 = decimation grid resolution for the triangle mesh collider (silhouette-accurate).
body_collider_thickness	float (0.001–0.1)	0.01	Outward push distance for the triangle mesh collider — the cloth-to-body gap.
collider_friction	float (0–1)	0.3	Bridson Coulomb μ at every contact (body + peer + self). 0 = slip, 0.3 = light, 0.7 = sticky.

Multi-cloth + Self-collision

Property	Type	Default	Description
peer_cloth_solvers	Array[NodePath]	[]	Other GPUClothSolvers whose current geometry this solver should collide against. Symmetric: name both ways for two-way interaction.
peer_collider_voxel_resolution	int (0–64)	12	Decimation resolution for the proxy mesh peers (and self) bind. 0 = no proxy (full mesh, much more expensive).
self_collide	bool	false	Enable cloth-on-self collision using this solver's own proxy mesh. Fixes flag/cape fold-through.
self_collide_thickness	float (0.001–0.05)	0.005	Gap layers separate by when they meet. Also the resting "puff" above the cloth's own surface.

Appearance + Inertia + Wind

Property	Type	Default	Description
cloth_material	Material	null	Override material (default: built-in procedural fabric shader).
flip_normals	bool	true	Negate computed normals — matches the common Blender/glTF round-trip winding. Set false for meshes that already produce outward right-hand-rule normals.
cloth_render_offset	float	0.0	Visual-only outward shell extrusion. Hides body-poke-through without touching physics.
cloth_skin_offset	float (0–0.1)	0.0	Physical outward offset applied to particles at init. Pairs with cloth_render_offset.
inertia_scale	Vector3	(1,1,1)	How strongly cloth resists parent translation per axis.
rotational_inertia_scale	float (0–1)	1.0	How strongly cloth resists parent rotation.
wind	Vector3	(0,0,0)	World-space wind direction + strength.
wind_turbulence	float (0–2)	0.3	Wind gust intensity.
wind_frequency	float	1.0	Wind gust speed.

Debug

Property	Type	Default	Description
debug_show_particles	bool	false	Colored cross at every particle (red = anchored, green = free) + yellow velocity vectors. Forces a GPU readback each frame — leave off for perf.
debug_show_colliders	bool	false	Wireframes of every active collider in its current animated pose. Cheap (uses CPU bone poses).
debug_show_peer_proxy	bool	false	Orange wireframe of the cloth-cloth proxy mesh deforming with the simulation.

GPUClothCollider Properties

Property	Type	Default	Description
shape	SPHERE / CAPSULE / BOX	CAPSULE	Collision primitive type
radius	float	0.3	Sphere/capsule radius
height	float	1.6	Capsule total height
extents	Vector3	(0.5,0.5,0.5)	Box half-extents
target	NodePath		Optional node to track transform from

Cloth Surface Shader

Every GPUClothSolver ships with a procedural fabric shader as its default material. No texture authoring required — three fabric types, full PBR controls, border trim, emblem placement, grunge/wear, animated lava, and shape-mask cutout are all driven by inspector uniforms. To use a custom shader, assign anything to the solver's cloth_material and the default is bypassed; custom shaders bind the substrate group (positions_tex, normals_tex, welded_index_tex) to read the GPU-simulated state in their vertex stage.

The shader file is at addons/godot_gpu_cloth/shaders/cloth_surface.gdshader. Uniforms are organized into inspector groups:

Fabric

Uniform	Type	Default	Description
fabric_type	int (0–2)	1	0 = Lava, 1 = Silk, 2 = Linen. Switches both the procedural albedo function and the matching procedural normal map
fabric_scale	float (1–100)	30.0	Spatial frequency of the fabric pattern. Higher = finer weave / tighter sheen streaks
fabric_normal_intensity	float (0–2)	0.5	Strength of the procedural normal map (driven into Godot's NORMAL_MAP_DEPTH)

Colors

Uniform	Type	Default	Description
primary_color	vec4	dark plum	Base fabric tone. For lava, this is the cool stone; for silk/linen, the unlit/recessed thread color
secondary_color	vec4	bright purple	Highlight tone. For lava, the glowing crack color (also used for emission tint); for silk/linen, the lit/raised thread color

PBR

Uniform	Type	Default	Description
base_roughness	float (0–1)	0.75	Base roughness before per-pixel modulation by the fabric pattern, dirt, and wear
metallic	float (0–1)	0.0	Metallic factor. Cloth is usually 0; bump up for foiled/silver-thread looks
specular	float (0–1)	0.3	Standard Godot specular

Border

Uniform	Type	Default	Description
border_width	float (0–0.15)	0.04	Border thickness in UV units
border_color	vec4	gold	Border tint
border_sharpness	float (0–1)	0.7	0 = soft fade, 1 = hard edge
border_glow	float (0–2)	0.3	Border emission multiplier
border_edge_mask	int (0–15)	7	Bitmask of edges to draw on. 1=left, 2=right, 4=bottom, 8=top. Sum the bits for combinations (e.g. 4 for hem-only, 15 for all four edges)

Emblem

Uniform	Type	Default	Description
emblem_texture	sampler2D	unbound	Heraldic / decal texture. Detected as unbound when smaller than 4 px and skipped automatically
emblem_center	vec2	(0.5, 0.45)	UV-space placement of the emblem center
emblem_scale	vec2	(0.3, 0.3)	UV-space size of the emblem
emblem_tint	vec4	gold	Multiplied into the sampled texture color
emblem_opacity	float (0–1)	1.0	Master opacity; multiplied with the emblem texture's alpha
emblem_blend_mode	int (0–2)	0	0 = Replace, 1 = Overlay, 2 = Additive

Grunge / Dirt

Uniform	Type	Default	Description
dirt_amount	float (0–1)	0.3	Master multiplier on all three dirt sources
dirt_color	vec4	dark brown	Color the fabric is tinted toward
dirt_gradient_power	float (0.5–5)	2.0	Curve of the bottom-hem dirt gradient; higher = more concentrated at the hem
dirt_edge_width	float (0–0.2)	0.08	UV-distance over which edge dirt fades in
dirt_noise_scale	float (1–20)	5.0	Spatial frequency of procedural grime patches
dirt_noise_intensity	float (0–1)	0.4	Weight of the noise-based dirt source
dirt_roughness_boost	float (0–0.5)	0.15	Dirty regions get rougher by this much

Wear

Uniform	Type	Default	Description
wear_amount	float (0–1)	0.15	Strength of the wear effect (brightens fabric near edges, simulating bleached/threadbare hems)
wear_noise_scale	float (1–30)	12.0	Spatial frequency of the wear noise mask
wear_edge_width	float (0–0.15)	0.06	UV-distance over which wear fades from edges into the body

Lava (only when fabric_type = 0)

Uniform	Type	Default	Description
lava_speed	float (0–2)	0.3	Animation speed of the warped FBM cracks
lava_crack_scale	float (1–20)	6.0	Spatial frequency of the crack pattern
lava_noise_octaves	int (2–5)	3	FBM octave count. More = richer detail at the cost of fragment cost
lava_emission	float (0–5)	2.0	Brightness of the glowing-crack emission. The emission color comes from secondary_color

Shape

Uniform	Type	Default	Description
shape_mask	sampler2D	unbound	Texture whose red channel cuts out non-rectangular shapes (banners, pennants, ragged hems). Detected as unbound when smaller than 4 px and skipped automatically
shape_mask_threshold	float (0–1)	0.5	Red value below which fragments are discarded
shape_mask_uv_scale	vec2	(1, 1)	Scale the cloth UVs before sampling the mask. Useful for tiling/centering
shape_mask_uv_offset	vec2	(0, 0)	Offset added after the scale

The voxel-AO consumer that lived here in 1.2.x–2.x was removed in the v3 substrate rewrite (the per-frame voxelize + sample compute passes assumed a per-frame CPU readback that the new GPU-only pipeline no longer does). Folds still self-shadow via standard lighting; SSAO at the camera level remains the recommended fill. A re-implementation that fits the new substrate is on the v3.1 backlog.

How It Works

Each frame, the solver runs an end-to-end GPU pipeline inside a single command list — no per-frame CPU mesh readback, no _rd.sync() stall. The rendered mesh's vertex shader samples positions_tex / normals_tex (written by the output pass) via a welded_index_tex lookup, so the simulation feeds rendering directly through storage textures.

once per frame, BEFORE substeps:
    SKIN              →  bone-skin each particle's attachment target (mat4 · rest_offset)
    SANITIZE          →  push every skinned target out of body + peer cloth volumes (kills rest jitter)

for each substep:
    PREDICT           →  apply gravity, wind, inertia offset; clamp to max_travel_distance
    for each iter:
      SOLVE           →  PBD distance constraints (graph-colored groups + barriers)
      COLLIDE         →  manual collider primitives (sphere/capsule/box)
      COLLIDE_TRIS    →  body triangle mesh collider (skinned per frame, SDF push + friction)
    FISHING           →  K-nearest pin clamp (optional, when pins exist)
    COLLIDE_PEER × N  →  one dispatch per peer cloth solver (SDF push against decimated proxy)
    COLLIDE_SELF      →  cloth-on-self via own decimated proxy (optional)
    UPDATE            →  recover velocity from position delta, lerp toward skinned target, damping

after substep loop:
    NORMALS  →  face normals per triangle (rest-aware sign correction)
    OUTPUT   →  accumulate per-vertex normals, write positions_tex + normals_tex

Welded particle substrate. At init, the input mesh's vertices are coalesced by a spatial hash + distance check (weld_epsilon) so duplicates at UV seams or hard-normal edges collapse into one simulated particle. Each unique edge becomes a structural constraint; each edge-shared triangle pair becomes a bending constraint between the two non-shared vertices. Rendering uses the original (un-welded) vertex slots, indices, and UVs — the welded layer is purely simulation. The render mesh's vertex shader does a two-step lookup: VERTEX_ID → welded_idx (via welded_index_tex), then welded_idx → position/normal (via positions_tex/normals_tex). UV seams persist visually because two slots either side of a seam map to the same welded particle, getting the same position but keeping their distinct UVs and per-face tangents.

Graph-colored constraint solving. Constraints are colored at init with a greedy pass — each constraint goes into the first group whose vertex set doesn't already contain either endpoint. No two constraints in a group share a particle, so each group dispatches race-free without atomics. Barriers between groups, no global sync.

Skinning pass. When skeleton is set, at init the solver reads ARRAY_BONES + ARRAY_WEIGHTS from the target mesh and captures each bone's init pose in solver-local space. Each frame the CPU re-packs current bone poses into a column-major mat4 buffer; the compute shader computes target = Σ bones[idx[i]] · rest_offset[i] · weight[i] per particle. The cloth-weight channel (0=anchored, 1=free) drives both the per-particle inverse_mass (weight 0 = pinned) and the attachment-stiffness lerp in the UPDATE pass that pulls free particles toward their skinned target. Marker3D pins override the skinned target for the nearest particle.

Body-derived colliders. A single body_mesh source can produce three independent collider techniques in parallel: auto-fitted bone capsules (one per qualifying bone, axis bone→child, radius from percentile-trimmed bone-weighted vert distances), per-vert sphere cloud (each sphere skinned to its dominant bone, packed as a degenerate capsule), and a voxel-decimated triangle mesh collider (cluster centroids per voxel, single-bone dominant skinning per tri vert). All three pack into a unified collider buffer that the per-substep collide passes consume. collider_friction applies Bridson Coulomb damping at every contact, killing the velocity injection that propagates as jitter through structural constraints.

Multi-cloth via shared RIDs. When peer_cloth_solvers is non-empty, each solver builds a decimated peer-collision proxy at init (voxel-cluster welded particles in rest space, remap _welded_indices through the rep subset). Peers bind the small proxy index buffer plus our full positions buffer directly via shared RenderingDevice — no copy, no readback. Per-frame dispatch = peer_proxy_tri_count × our_particle_count, typically 20× cheaper than full-mesh collision. Self-collision reuses the same shader with a push-constant is_self flag that tells the shader to skip triangles where the testing particle is a vertex.

Fishing-line constraint. Once per substep after the spring solve, each particle reads its K-nearest pins' current positions, accumulates a weighted-blend target, and projects back onto the stretch × rest_distance sphere if it's drifted past. The outward radial velocity component is zeroed at the boundary so the particle slides instead of buzzing. Tension propagates pin → particle in O(1), no cascading through the spring network.

Particle representation. Positions are vec4(x, y, z, inverse_mass) where inverse_mass = 0 means pinned. The constraint solver naturally handles pin/free weighting in a single code path.

Gravity / wind frame. Both are authored in world space and transformed into the reference-frame (skeleton in rigged mode, solver-local in unrigged) by the CPU before dispatch. Rotating the GPUClothSolver node tilts the rest pose with it, but gravity still points world-down and wind still blows world-east.

Demo

Open Demo/cloth_demo.tscn for the v3 showcase scene. The Demo/Assets/ subfolder ships four self-contained example setups:

• AnimatedHuman — rigged character in shirt + pants, each its own solver, peer-collision wired both ways. Body-derived triangle mesh collider on the pants. Shows the full multi-cloth + body-collision stack.
• LowPolyDude — single-cape solver attached to a humanoid skeleton; demonstrates cloth_weight_channel painting for "rigid collar, free hem" on one mesh.
• GreenFlag — flag with self_collide enabled so the cloth can fold over itself in the wind without fold-through artifacts.
• Cat — low-poly cat with a draped sim-masked cape, exercising the unrigged-mode + skinned-target sanitization paths.

Companion scripts in Demo/ (orbit_camera.gd, player_controller.gd, spin.gd, sine_wiggle.gd) drive scene cameras and animations.

Credits

Built and maintained by alien-life.

Significant contributions to the solver architecture by MaxYari. Thank you.

The fishing-line anchor constraint (v1.3.0) was inspired by Sucker Punch's Ghost of Tsushima cloth pipeline.

License

MIT
